Our product
Cleaning Technology Solution for Spinning Staple Fiber Project
§ Cleaning Process
A. Recommended Cleaning Process
1. Vacuum Pyrolysis Cleaning   2. Alkali Cleaning, Washing
3. Ultrasonic Cleaning      4. Spinneret Inspection
§ Introduce

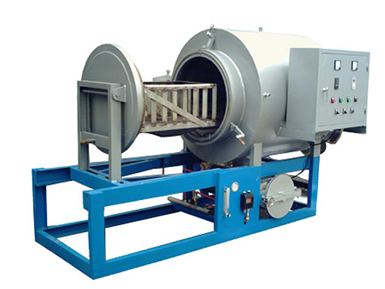

1. Vacuum Pyrolysis Cleaning For Circular Spinneret
Vacuum Pyrolysis Cleaning device is designed specially for cleaning polymers from a variety of metal components. The parts to be cleaned are heated in a chamber where the polymer melts and drains into the bottom collector. Remaining polymer is vaporized .
2. Vacuum Pyrolysis Cleaning For Rectangular Spinneret

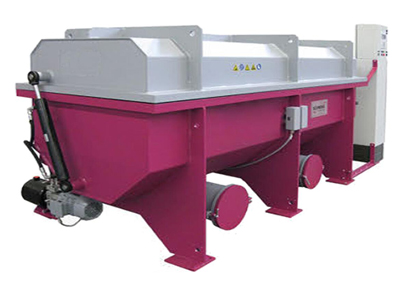

3. Alkali cleaning、Washing
Alkaline (water) cleaning device is matching Vacuum Pyrolysis Cleaning equipment,Vertical cylindrical structure, open cover for cylinder type.

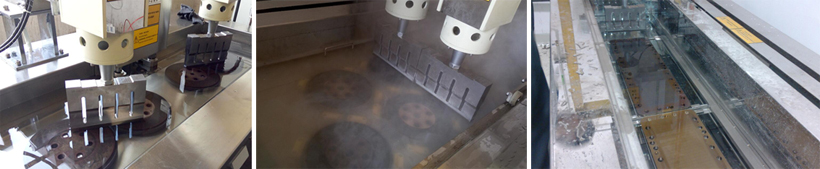

4. Ultrasonic Cleaning
Ultrasonic cleaning to remove remaining ash and restore spinneret holes to like new.Positive for different cleaning objects, we are equipped with special ultrasonic cleaning equipment.

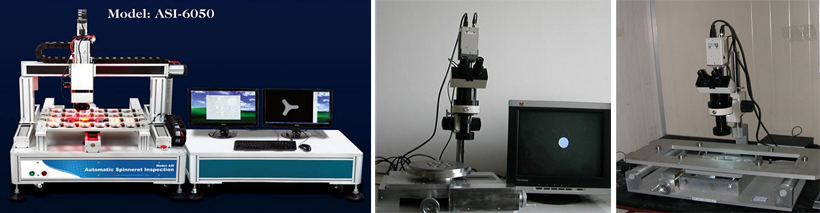

5. Spinneret Inspection
Because spinneret hole cleaning is the key factor in spinning quality and efficiency,it is critically important to detect the cleanliness of spinneret holes.

§ Model Selection
1. Circular Spinneret Cleaning
No. Project Model Example Details
1 Vacuum Pyrolysis Cleaning Device VVPC Series VVPC-1015 超链接
2 Alkali cleaning、Washing Device ACD/WCD Series ACD/WCD-1015
3 Ultrasonic Cleaning Device NFU Series NFU-1530D-R
5 Auto Spinneret Inspection system ASI-6050 ASI-6050
Manual Spinneret Inspection device MSI Series MSI-SO
2. Rectangular Spinneret cleaning
No. Project Model Example Details
1 Vacuum Pyrolysis Cleaning Device HVPC Series HVPC-1015 超链接
2 Alkali cleaning、Washing Device ACD/WCD Series ACD/WCD-1015
3 Ultrasonic Cleaning Device NFU Series NFU-1525D
5 Auto Spinneret Inspection system ASI-6050 ASI-6050
Manual Spinneret Inspection device MSI Series MSI-FO
3. Other Spin-pack Cleaning
No. Spin-pack Name Device Details
1 Rectifier Soaking Tank 超链接
2 Rectifier Ultrasonic Cleaning
3 Spin-pack Shell, Filter Ultrasonic cleaning
4. Other Device
No. Name Details Remark
1 Spin-pack Assemble/Disassembly Device 超链接
2 Drawer type Spin-pack Preheating Oven
3 Pit Spin-pack Preheating Oven
4 Oil-Blended System
5 Laboratory Table
6 Laboratory Instrument
7 Other chemical Tank
8 Silk Barrel
