Regeneration PET Polyester Filter | |||||||||||||||||||||||||||||||||||||||||||||||||||||||

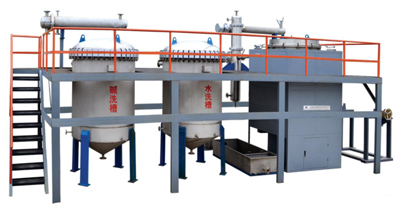

§ Cleaning Process A. Recommended Cleaning Process 1. Vacuum Pyrolysis Cleaning 2. High Pressure Washing 3. Ultrasonic Cleaning 4. Bubble Point Testing B. Cleaning Process 2 1. Steam Hydrolysis Cleaning 2. Vacuum Pyrolysis Cleaning 3. High Pressure Washing 4. Ultrasonic Cleaning 5. Bubble Point Testing § Introduce 1.Vacuum Pyrolysis Cleaning Vacuum Pyrolysis Cleaning device is designed specially for cleaning polymers from a variety of metal components. The parts to be cleaned are heated in a chamber where the polymer melts and drains into the bottom collector. Remaining polymer is vaporized. 2.High Pressure Washing High-pressure cleaning machine is used to remove Tio2 and alkali remaining in the filter core. Fully automatic process with programmable microprocessor controller for cleaning of single filter elements.Systems available for various filter candle dimensions and variable systems for different candle dimensions. 3.Ultrasonic Cleaning After high-pressure cleaning, ultrasonic cleaning follows to further remove remaining for fully clean, then bubbling inspection is used. 4.Bubble Point Testing The filter is submerged to a predetermined depth in the test liquid; air is introduced into the core of the filter with the pressure gradually increasing. The test liquid pushes through the filtering medium surface at a position on the filter body in line with the largest pore size or notable hole. The pressure at which air bubbles are emitted from the surface relates directly to the bubble-point pressure. 5.Steam Hydrolysis Cleaning Steam Hydrolysis cleaning system mainly used for cleaning the polyester, Polymers in the filtration core has fast hydrolysis under high temperature water vapour. It is resulted in polymers of low molecular weight which causes high polymers to loose high viscosity and high adhesive force to make it apart from the filtration core and the core cleaning is done. 1. R-PET Project
|
