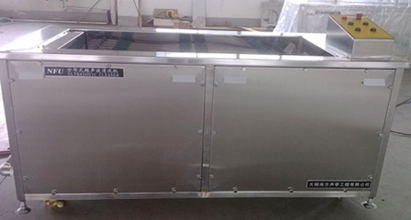

Immersion Type Ultrasonic Cleaning Device

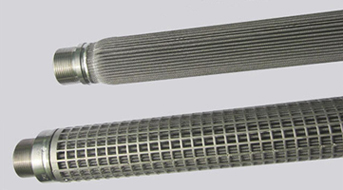

Cleaning Objects: Filter of PET, PBT, PA, R-PET, Particularly suitable for high filter precision filter.
Cleaning Objects

Features:

High efficiency - cleaning multiple parts at one time.
Consistent results - non-operator dependent.
Immersible transducers provide versatile ways to add ultrasonics to tankage in a variety of industrial settings.

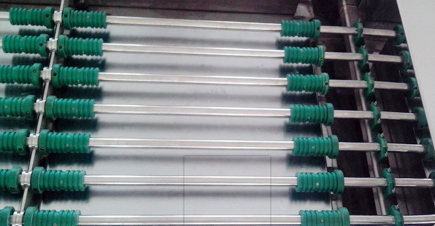

According to the different specifications of the workpiece, the allocation of special cleaning bracket.
It is sure to 360 degree operation with no dead angle when ultrasonic moving.
Specifications:
Model NFU25-4000 NFU25-6000
Cleaning capacity 6pcs 8pcs
Horn Frequency 25KHz 25KHz
Ultrasonic Power(Horn) 4000W 6000W
Power Density 0.5-1.2W/cm2 0.5-1.2W/cm2
Outline Dimension 1620×895×850 1620×1035×850
Cleaning Tank Dimension 1356×630×330 1356×770×330
Power Supply 380V 50Hz 380V 50Hz
Heating Power 6KW 6KW
Working Temp. 50 degree 50 degree
Inlet DN15 DN15
Outlet DN40 DN40
Cleaning Time 4 hours 4 hours
Remark:Couldn’t list all here. It can be customized according to the size of parts to be cleaned.
Device cleaning capacity based on filter of φ60×1000mm.
Typical models:



Cleaning Method:

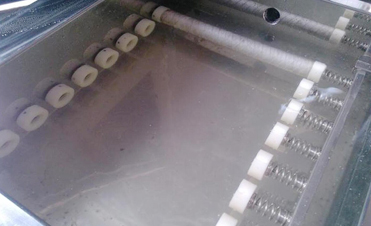

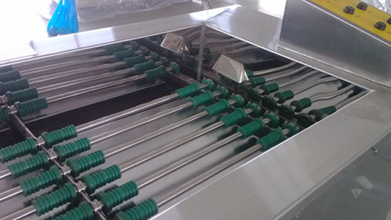

It is cleaned by fixed resonator, and the filter is rotating at all the cleaning time.
Fixed resonator is fixed under the bottom of cleaning tank,is used to cleaning up the back side of filter.
The control cabinet is used to control the cleaning device operation, display equipment running status.
Generator part:
using high speed embedded processor; DDS digital frequency synthesis technology to keep frequency precise and stable and tracking in time.
